Graphic LCD Display Module , 64 X 64 Dots COG STN Gray Transmissive Positive Mode
| Display Format: | 64 x 64 Dots | Display Mode: | STN Gray Transmissive Positive |
| Viewing Angle: | 6 O'clock | Driving Voltage: | 3.0 V |
| Operating Temperature: | -20 ℃ To 70℃ | Storage Temperature: | -30 ℃ To 80 ℃ |
| Backlight Color | White | Application: | Instrument & Meter |
| Interface | 4 wire SPI interface | Pin | 12 pins |
| LED Lights | 2 LEDs | Current | 30 mA |
Features:
Part No. : ZP6464G-720-BN
Display Type : COG LCD Display Module
Display format: 32x64 dots-matrix,1/64 duty,1/9 bias
Display mode: STN Blue Transmissive Negative
Structure: STN LCD panel + FPC
Controller: ST7567 or Equivalent.
Module size: 26.85 (W) x 31.35 (H) x 2.8 max (T) mm
Viewing area size: 22.5 (W) x 22.5 (H) mm
Active area size: 20.46 (W) x 20.46 (H) mm
LCD Driving Voltage: 3.0V
Operating temperatures: -20 to 70°C
Storage temperatures: -30 to 80°C
Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.

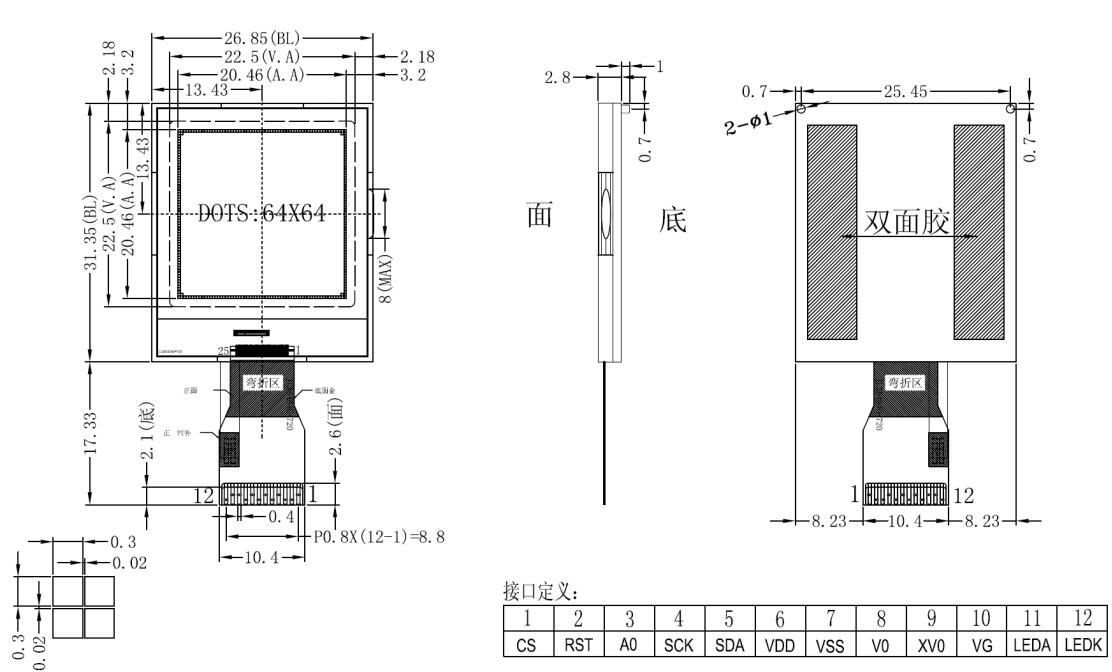

Graphic LCD Display Module 64x64 dots Mechanical Drawing
|
|
Graphic LCD Display Module , 64 X 64 Dots COG STN Gray Transmissive Positive mode Images
|
