Graphic LCD Display Module , 122 X 32 Dots COB STN Blue Transmissive Negative
| Display Format: | 122 X 32 Dots | Display Mode: | STN Blue Transmissive Negative |
| Display Type: | COB LCD Module | Viewing Angle: | 6 O'clock |
| Backlight: | Blue LED | Driving Voltage: | 5.0 V |
| Operating Temperature: | -20 ℃ To 70℃ | Storage Temperature: | -30 ℃ To 80 ℃ |
| Type: | COB | Item: | 12864 LCD Module |
| Controller: | AX6120 | Viewing Area: | 59.6 X 18 mm |
Graphic LCD Display Module, 122x32 Dots COB Features:
Display format: 122x32 dots-matrix,1/32 duty
Display mode: STN/blue/Transmissive/negative
Structure: STN LCD panel + Bezel+ Zebra +PCB
Controller: AX6120 or Equivalent.
Module size: 80.0(W) x 36.0(H) x 13.5 max (T) mm
Viewing area size:59.6(W) x 18.0(H) mm
Dot size: 0.36(W) x 0.41(H) mm
Dot pitch: 0.40(W) x 0.45(H) mm
LCD Driving Voltage: 5.0V
Operating temperatures: -20 to 70°C
Storage temperatures: -30 to 80°C
Graphic LCD Display Module, 122x32 Dots COB Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
Frequently Asked Questions ( FAQ )
Q: How about the Delivery term of COG Graphic LCD Display Module?
A:For samples , we will finish production and ship within 7 working days .
We usually arrange DHL , UPS , FedEx express to ship samples .
For bulk orders , usually 30 working days and depends on your design .
We support shipping by air or by sea as per customers' requirements.
Q: What is your Packing term?
A: Protect product with polyfoam and multi layer paper board .
Special protect carton for exporting product .
Per customer requirement .
Q: Can you support OEM and ODM?
A:We support both standard and customized products and can put your logo on the products .
Our experienced R&D team will support technical questions . ODM and OEM products are warmly welcome .
Q:Why should a client choose your company?
A:We are specialized in offering top quality Mono and TFT LCD solutions.
More than 10 years’ experience in LCD R&D and manufacturing .
Strong R&D term supports perfect custom design services.
Small orders are accepted and welcome.

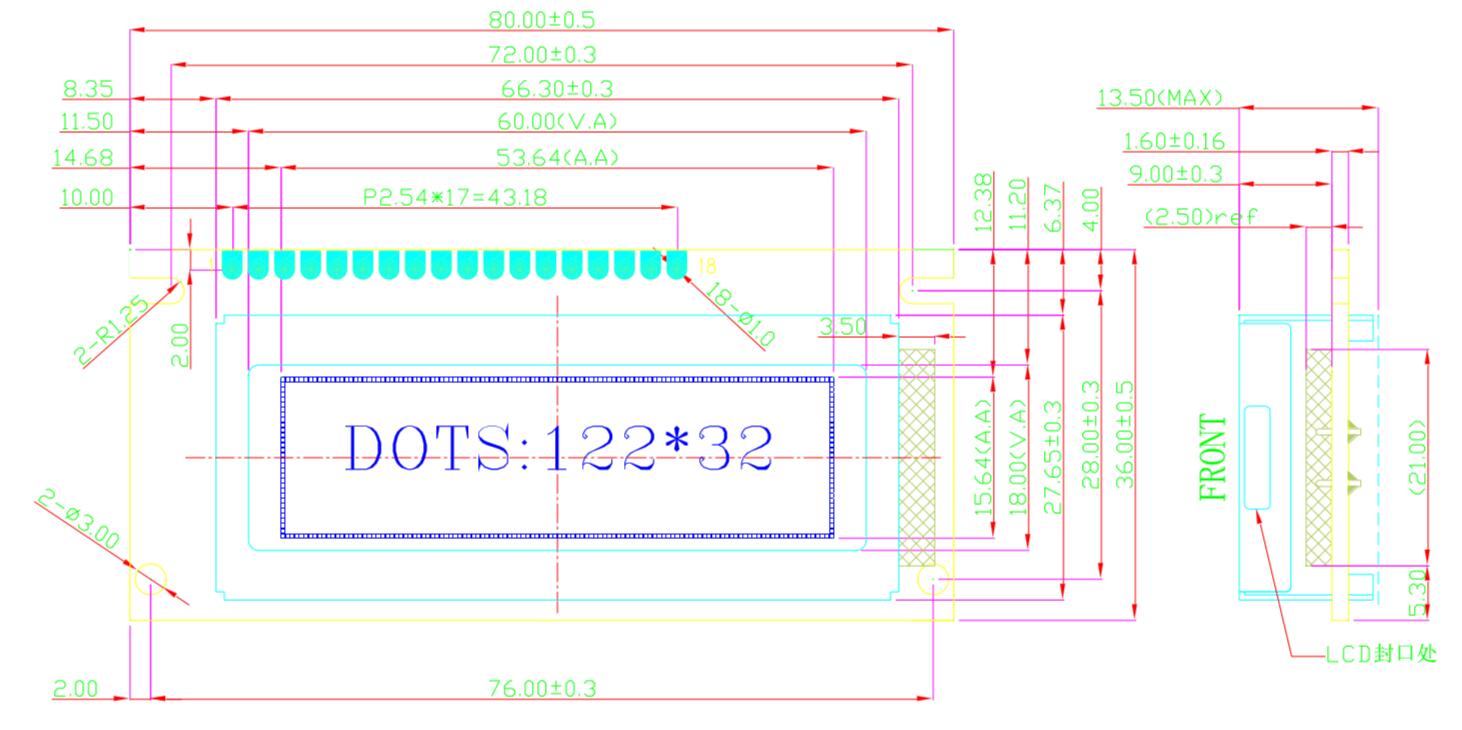

Graphic LCD Display Module 122x32 dots Mechanical Drawing
|
|

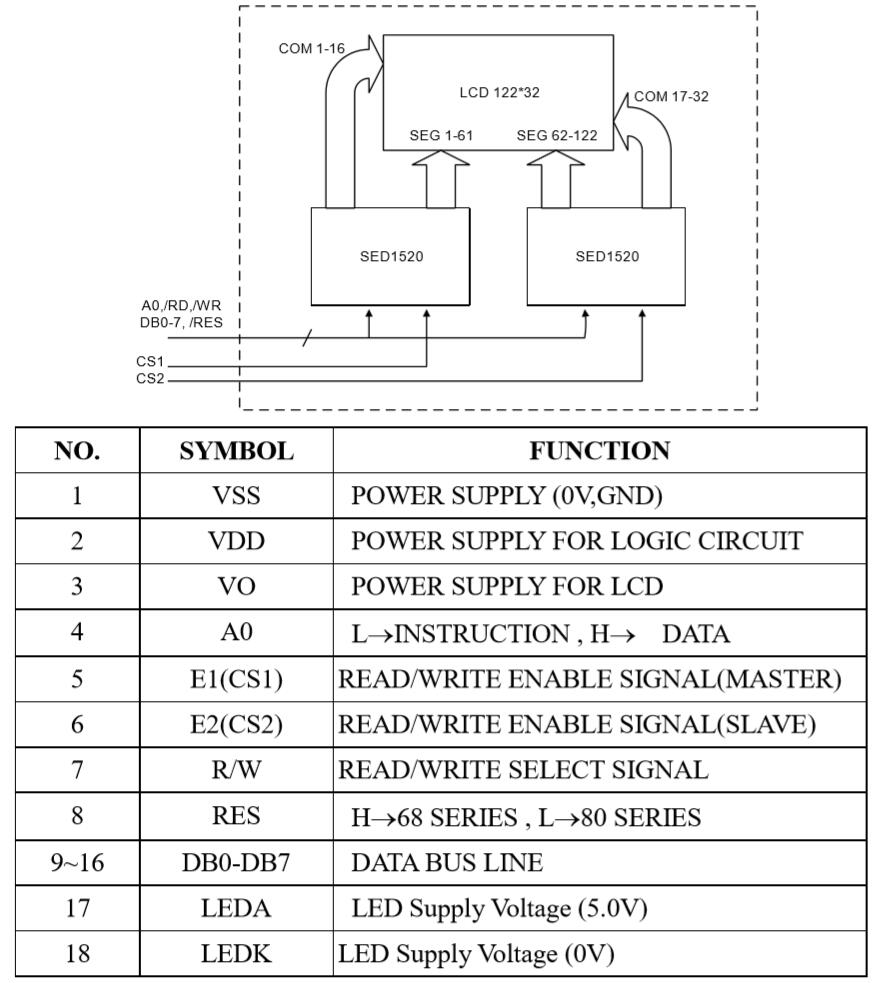

Graphic LCD Display Module , 122 X 32 Dots COB STN Blue Transmissive Negative Images
|
